Product details:

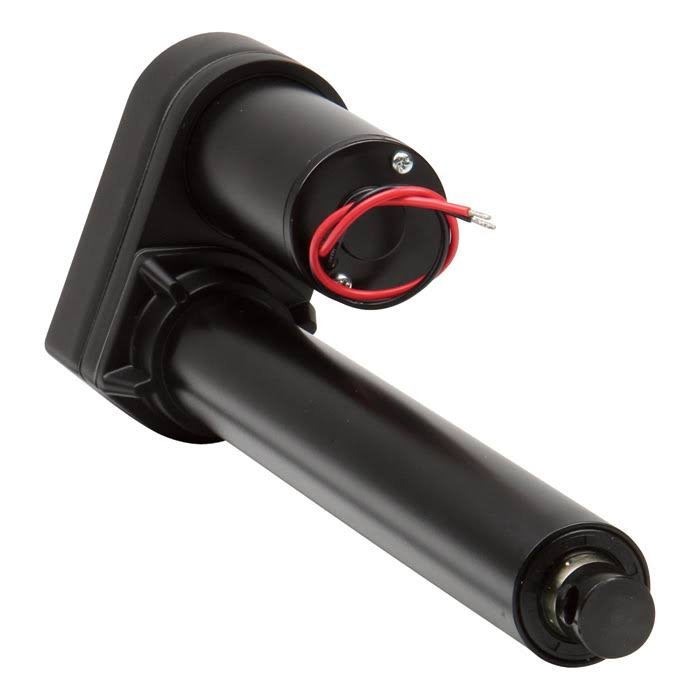

Rugged Glideforce ID-Ballscrew linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 201 reduction gearbox that gives Ballscrew actuator a dynamic load rating of 1,000 lbs. and is rated to hold up to 3,000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm. Overall Dimensions L x W x H in. 21 x 3 x 6, Product Type Actuator, Dynamic Load Capacity lbs. 1,000, Stroke Length in. 12, Power Volts 12, Static Load Capacity lbs. 3,000, Frame Material Aluminum, stainless steel, Gear Ratio 201, Length Retracted in. 20 1/8. 12in. nominal/11.34in. actual stroke 12V motor 201 reduction gearbox 1.000-lb. dynamic load rating 3.000-lb. static load rating Extension speed is 0.56in./sec. at max. load Extension speed is 0.66in./sec at no load 25 duty cycle 13.2 Amps at max. load 2.4 Amps at no load IP65 enclosure Ballscrew drive assures smooth and quiet operation Built-in torque limiter prevents overdriving All metal powder-coated housing is water-resistant and sealed against dust 1/2in. mounting pin holes 20.08in. retracted length 1.125in. shaft diameter Model Number: LACT12-1000B. Age Group: adult.
